DIN 46235 tube terminals 6-400 mm²

KR16-8DIN

Material: Cu 99.95%, tin plated Cu/Sn.
Dimensions according to DIN 46235, the number of crimps is indicated on the neck of the terminal.

Example of palm marking: 70 10

70 = mm² 10 = palm hole for M10

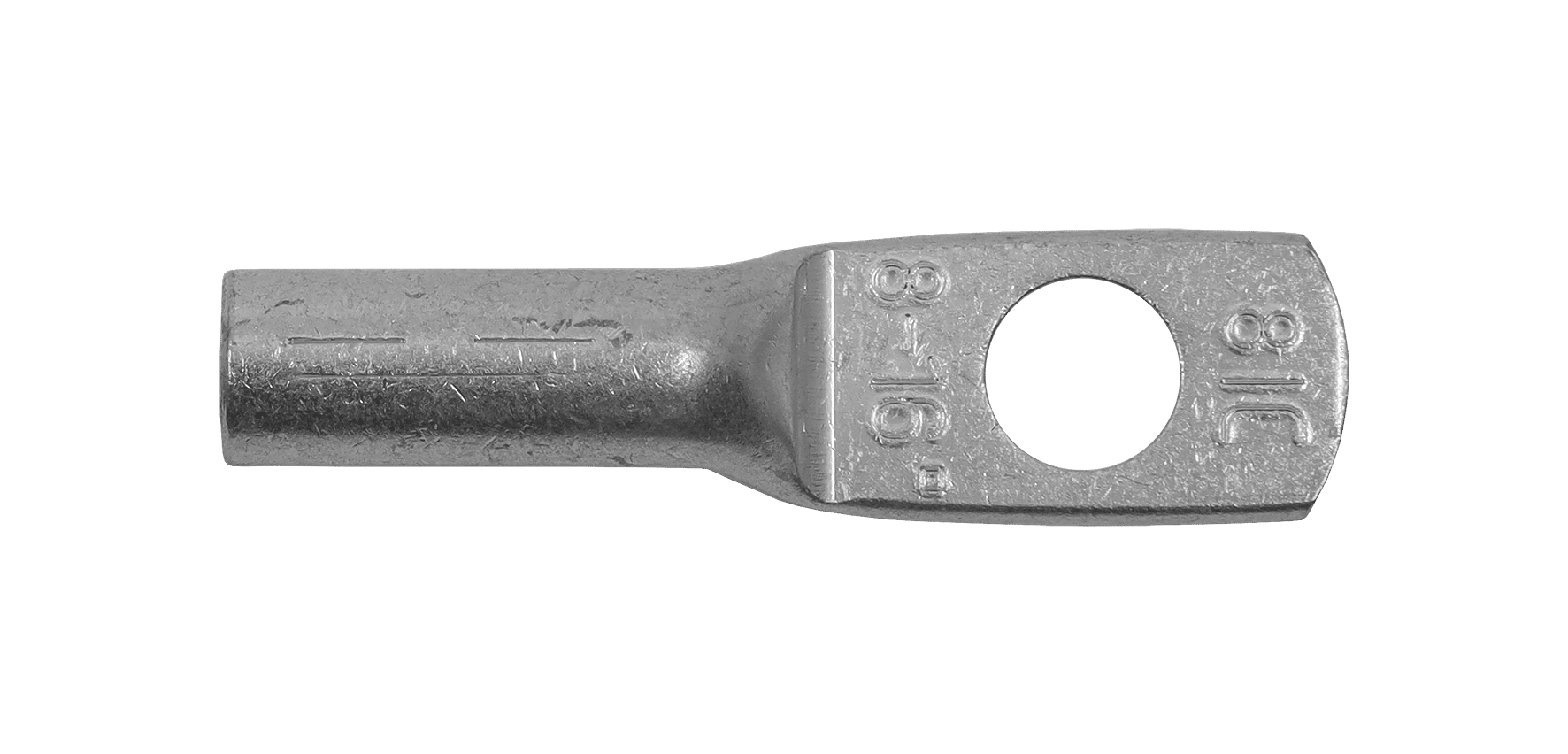

Tube terminal for multi-stranded (class 5) and stranded (class 2) Cu conductors (acc. to IEC 60228), 16 mm², with an M8 hole in the palm. Used with Elpress certified systems V600, V1300.

Dodaj do koszyka Create product leaflet

Item number: 7301-087900

EAN: 7393487014831

W (mm): 13

N (mm): 11

N1 (mm): 10

P (mm): 21

d (mm): 5.5

D (mm): 8.5

L (mm): 36

s (mm) - strip length: 20

Screw: M8

Inspection hole: Yes

AWG/MCM Cu: 6 AWG

mm² Cu: 16

Surface protection: Tin plated

Flange shape: Ring shape

Conductor category: Class 2 = stranded

Number of mounting holes: 1

Material: Copper

Bolt dimension metric (M): 8

With sight-hole: Yes

Pieces per pack: 100

Net weight (kg): 0.013

Height Pack (mm): 70

Depth Pack (mm): 90

Width Pack (mm): 90
